Name: Yongnuo Off Camera Flash and Trigger Set (Manual)
SKU: 270596

Product Details ＋

Availability: Item ships within 7 days of ordering.

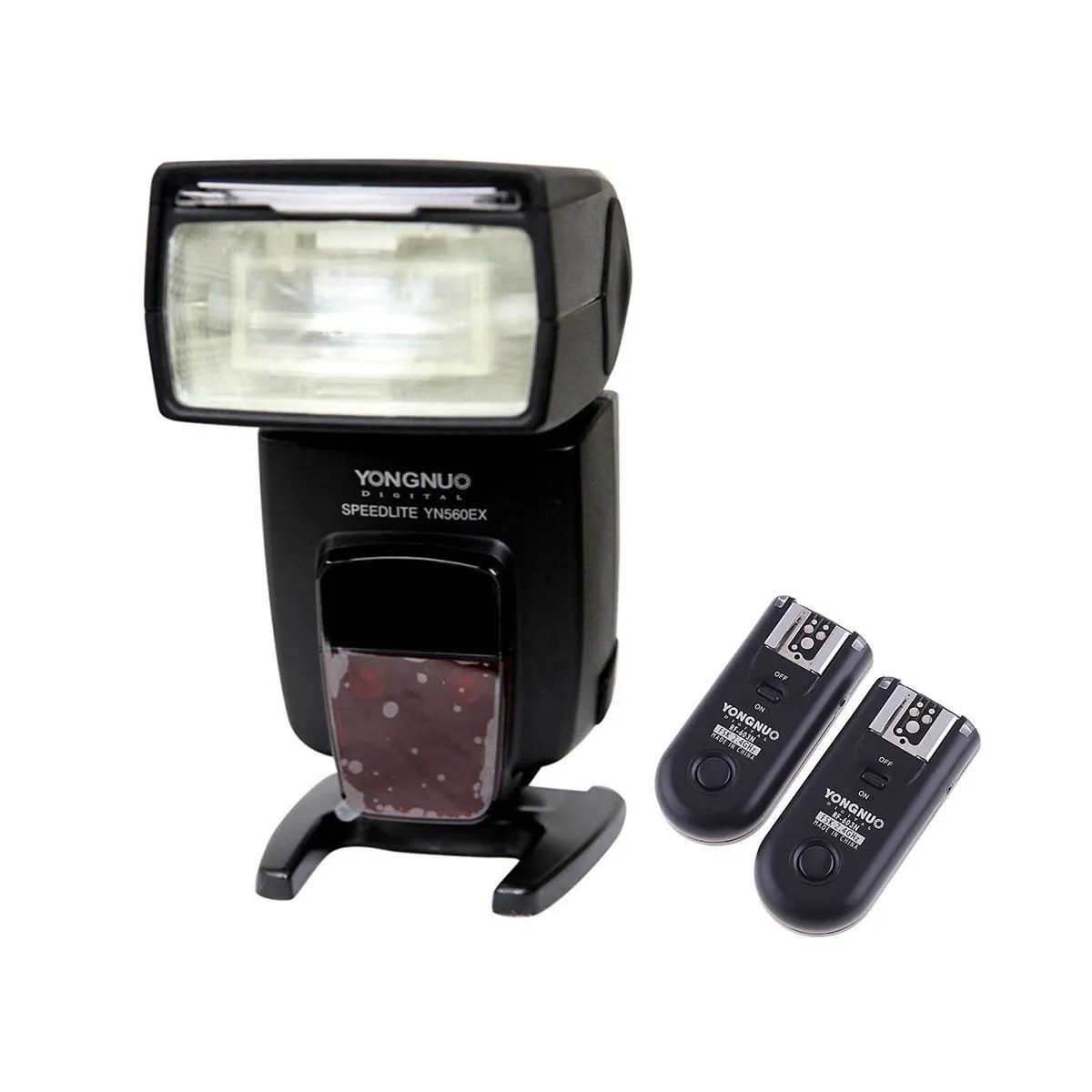

Our Off Camera Flash and Trigger are perfect for any photographer who uses off camera flash. The Yongnuo YN-560EX speedlite and Yongnuo RF-603 (manual) make the perfect pair.

Please confirm the RF-603 cable you require which is dependent on your camera model. Choose between C1, C3 for Canon and N1, N3 for Nikon.

Yongnuo YN-560EX Speedlite

The YN-560EX is Yongnuo's new slave only TTL flash. It has been renamed from YN-EX600 flash to YN-560EX. This flash is a perfect companion for a modern camera with integrated TTL flash trigger, a ST-E2 or a TTL master flash providing infrared signals. An additional TTL trigger is not required, because the flash is equipped with a manual hot shoe, one cannot use TTL if mounted on camera or with an additional radio flash trigger.

Flash Mode

M, Multi, SC, SN, S1, S2 Zoom Range: 24, 28, 35, 50, 70, 80, 105mm Vertical

Rotation Angle

7-90 degrees Horizontal Rotation Angle: 0~270 degrees

Power Supply:

AA size batteries (Alkaline or Ni-MH are usable, batteries are not included)

Support Remote TTL Functions

In the case of remote mode, FEC, FEB, Rear-curtain sync, FE lock is supported.

Remote Wireless Trigger Supported

The YN-560EX supports remote wireless trigger function, which makes the Sc/Sn/S1/S2 mode can be used in outdoor environment and the wireless trigger distance is as long as 15 meters/49 feet.

Additional Features

Rear-curtain sync, FEC, FEB, FEV, the electronic flash head zooming, sound prompt, automatically saving setting, PC port, power saving mode, over heat protection, advanced setting.

Large LCD Panel

FE Lock (Canon). FV Lock (Nikon). Flash exposure compensation. Supporting high speed continuous shooting. Multi-flash lighting application. Super speed of charging recycle and a metal hot-shoe stand.

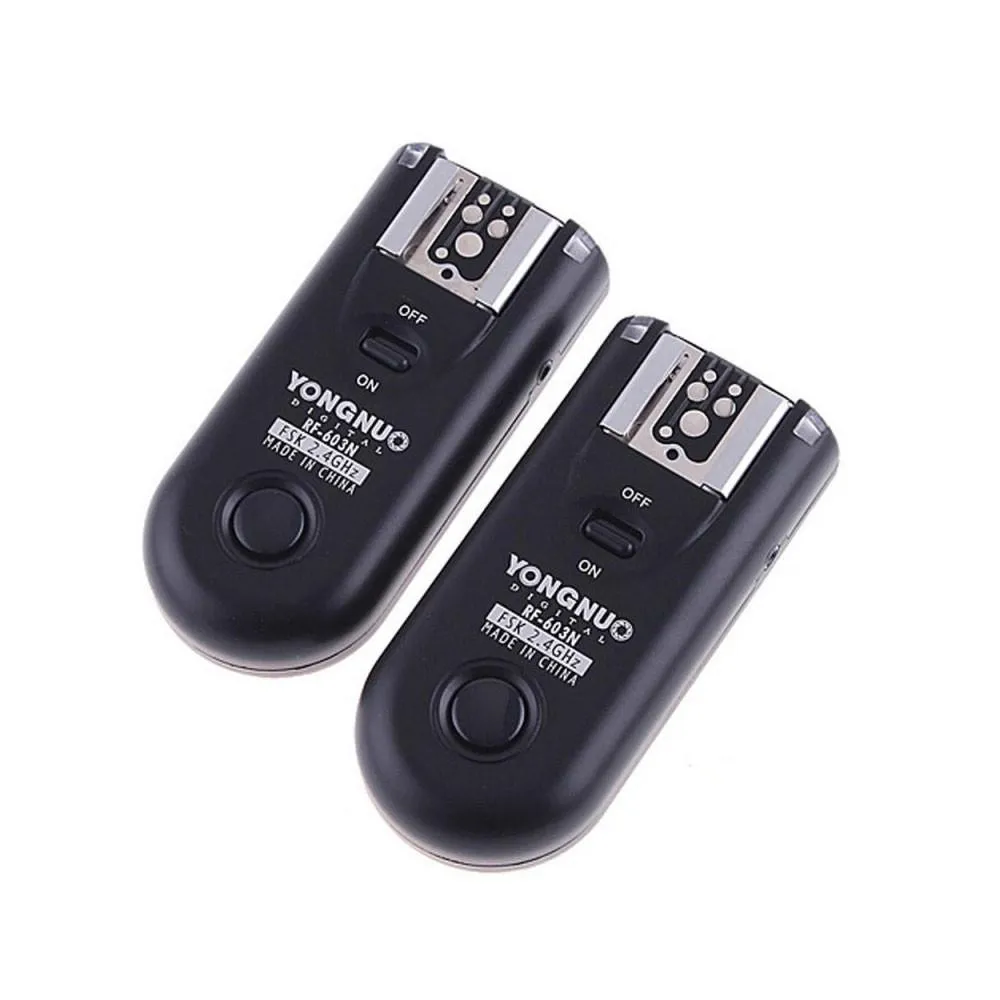

Yongnuo RF-603 Trigger

Each RF-603 is designed to work as trigger and as receiver. The unit automatically detects the mode it should work in. You have the full flexibility out of your gear. As a receiver it fires off-camera flashes which are placed on the hot shoe of the transceiver. Additionally the transceivers PC Sync connector can be used to fire studio strobes. Required cables to 3.5mm (1/8"), 6,35mm (1/4") can be purchased from us.

Wake up function

Mount the transmitter into hot shoe of the camera, connect the receiver with the flash, press half-way the shutter button to wake up the flash at the same time, the green signal light will be bright for some seconds and then press shutter button completely to fire the flash. This "Wake up" function is only supported for flashes which have a sleep mode. As a trigger the RF-603 can be placed in the cameras hot shoe or if you wish be connected with the camera by a PC Sync cable. In the latter case you are free to mount an additional flash top-camera. One transceiver can trigger more than 1 flash at the same time. You would have to buy additional transceivers for 2 or more flashes, since you need one transceiver as a trigger and one or more transceivers as receivers.

Wireless Remote Shutter Release

On camera - You can mount one receiver into the camera and connect it with the camera via the 2.5mm shutter connecting cable, and can remote control the camera with other receiver. You can use it to fulfill the function of auto-focus, continuous shooting, long exposure, half-way pressing, full-way pressing and bulb.

Remote Shutter Release

Off Camera - You can use the single receiver to fulfill the function of remote shutter release after you connect it with your camera via the 2.5mm cable.

Flash Trigger

One receiver can fire one flash speedlite, one set of RF-603 can control speedlites at the same time.

C1 version:

— Canon 70D / 60D / 700D / 650D / 600D / 550D / 500D / 450D / 400D / 350D / 300D / 1200D/ 1100D / 1000D /
— Pentax K20D / K200D / K10D / K100D,
— Samsung GX-20 / GX-10

C3 Version:

— Canon 1D / 1DS / 5D / 6D/ 7D / 50D / 40D / 30D / 20D / 10D

N1 Version:

— D810 / D800 / D700 / D300 / D2X / D2H / D200 / D1H / D1X / D3X / D3
— N90s / F5 / F6 / F100
— Fuji Film: S5 Pro / S3 Pro
— Kodak: DSC-14N

N3 Version:

— Nikon D90 / D600 / D7100 / D7000 / D5100 / D5000 / D3100 / D3000

Uses
