Product Details
＋

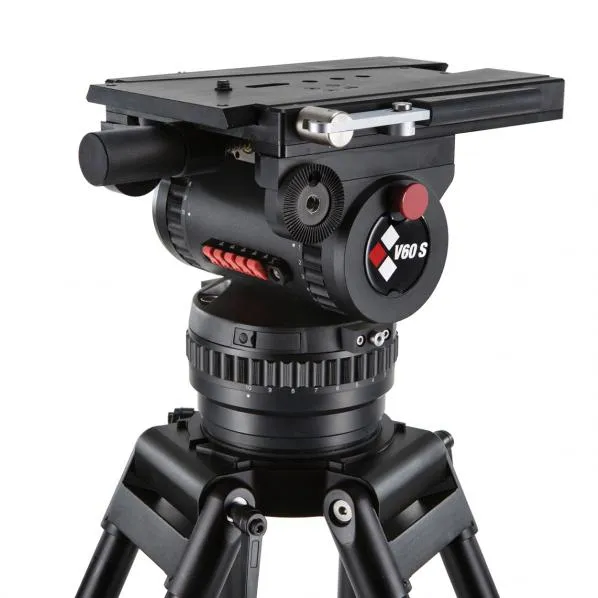

V60 Cast and Machined Aluminum Studio Fluid Head, Capacity 0-155 lbs. at 150 COG For EFP/Studio camera’s, Studio Type Rotation fine adjustment Knob for the sliding camera plate mechanism with 8” range, V-lock studio camera plate with locking lever, build lock for secure camera package assembly, 60 position stepped counterbalance, 10 steps Fluid Pan and Tilt Drag. 2-PB-3 studio type Telescoping Pan Bars, Head mounts to Pedestals or Legs via 4 bolt flat base or via Mitchell adapter (see accessories). Hard travel case with casters and integrated extended handle included.
Specifications
| Bowl Diameter | 4-bolt Flat Base |
| Camera Platform Type | V-Plate |
| Camera Plate | Camgear V-Plate , Double 3/8" screw |
| Counterbalance System | 10 5 steps (10-1 & 5 adjustable levers) |
| Pan & Tilt Drag | 10 steps (1-10) |
| Pan & Tilt Range | Pan: 360° / Tilt: 90/-75° |
| Temperature Range | -40°C to 60°C / -40°F to 140°F |
| Levelling Bubble | Illuminated |
| Pan Bar | Camgear Telescopic PB-3 (set of 2, left & right) |
| Maximum Payload | 60 kg / 132.28 lbs |
| Weight | 15.52 kg / 34.22 lbs |
| Sliding Range | 180 mm / 7.1 inch |
