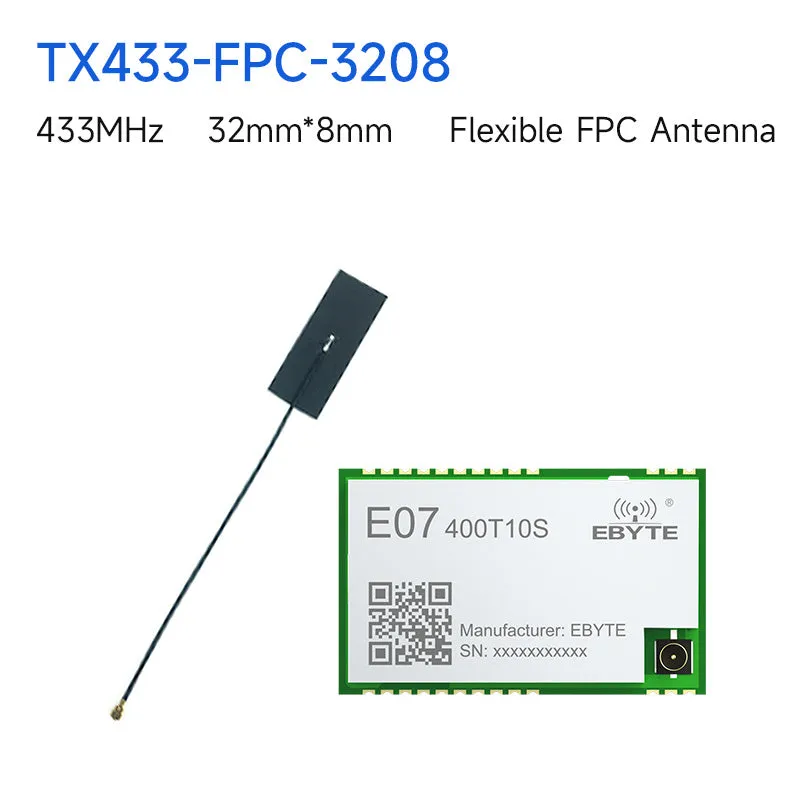

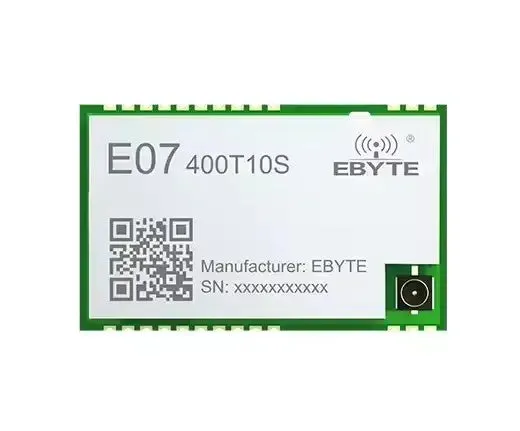

NEW Ebyte OEM/ODM modem internet E07-400T10S development boards and kits
[IC]：CC1101
[Frequency]：410~450MHz
[Power]：10dBm
[Distance]：1.5km
[Size]：16*26mm
[Product weight]：1.2g

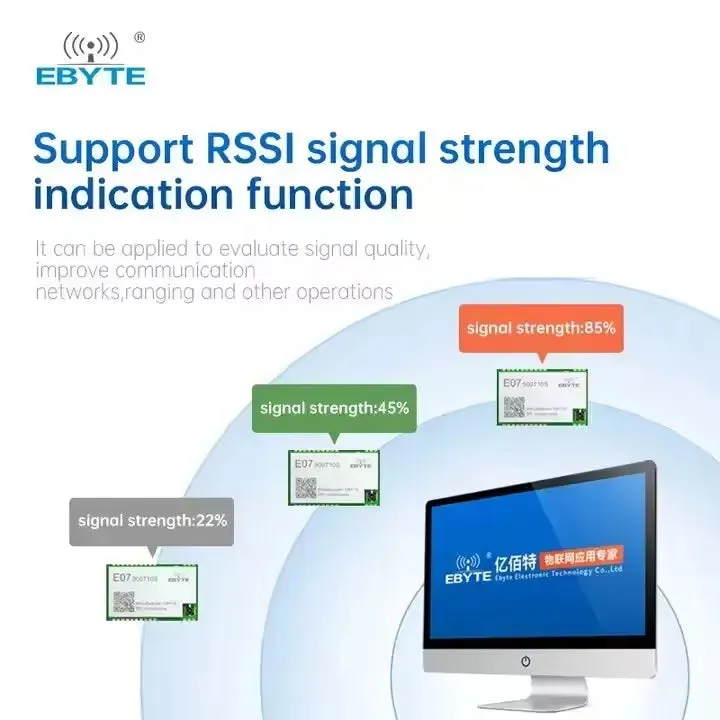

[Introduction]：E07-400T10S is an independently developed 410~450MHz SMD wireless module based on the CC1101 chip produced by Texas Instruments (TI), using industrial-grade high-precision 26MHz crystal oscillat
| Main parameter | Performance |
Remark |
| Reference distance |
1.5km |
Sunny and open environment, maximum power, antenna gain 5dBi, height 2.5m, air speed 1.2kbps |
| FIFO |
64Byte |
Maximum length of single transmission |
| Crystal Oscillator |
26MHz |
External crystal oscillator |

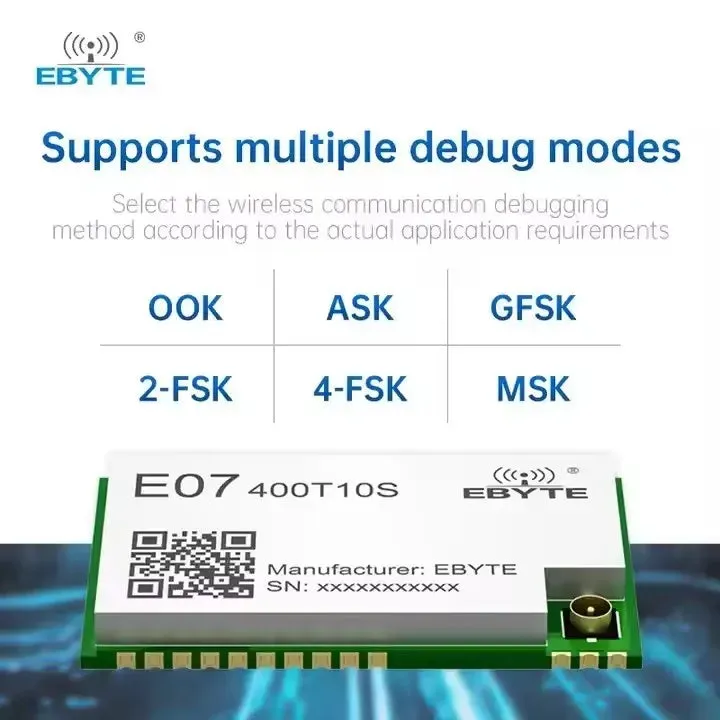

| Modulation |
GFSK(recommendation) |
Support OOK、ASK、GFSK、2-FSK、4-FSK and MSK |
| Package |
SMT stamp hole |
Half hole, hole spacing 1.27mm |
| Interface method |
1.27mm |
Half hole |
| Communication Interface |
UART、SPI、ADC、GPIO |
It needs to be developed and set by the user |
| Size |
16 * 26 mm |
- |

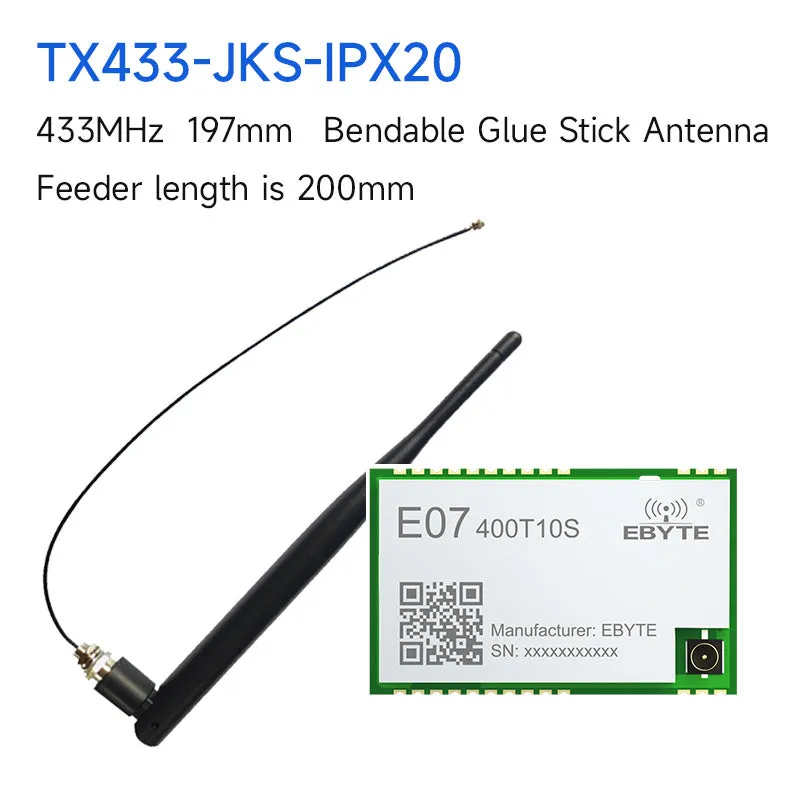

| Antenna |
IPEX/Stamp hole |
Equivalent impedance is about 50Ω |
| Parameter | Min. | Typ. | Max. | Unit | Remark |
| Operating voltage |
2.5 | 5.0 | 5.5 | V | ≥ 5.0V ensure output power Burn the module permanently over 5.5V |
| Operating frequency |
410 | 433 | 450 | MHz |
Support ISM |
| Communication level | - | 3.3 | - | V | When using 5.0V TTL, it is recommended to add electrical level conversion |
| TX current | - |
35 | - | mA | Instantaneous power consumption |
| RX current | - | 18 | - | mA |
- |
| Sleep current | - | 0.6 | - | μA | Software shutdown |
| Operating temperature |
-40 | 20 | 85 | ℃ | Industrial grade |
| Receiving sensitivity |
- |
-106 |
- |
dBm |
GFSK，Air data rate is 1.2kbps |
