Product Details
＋
-

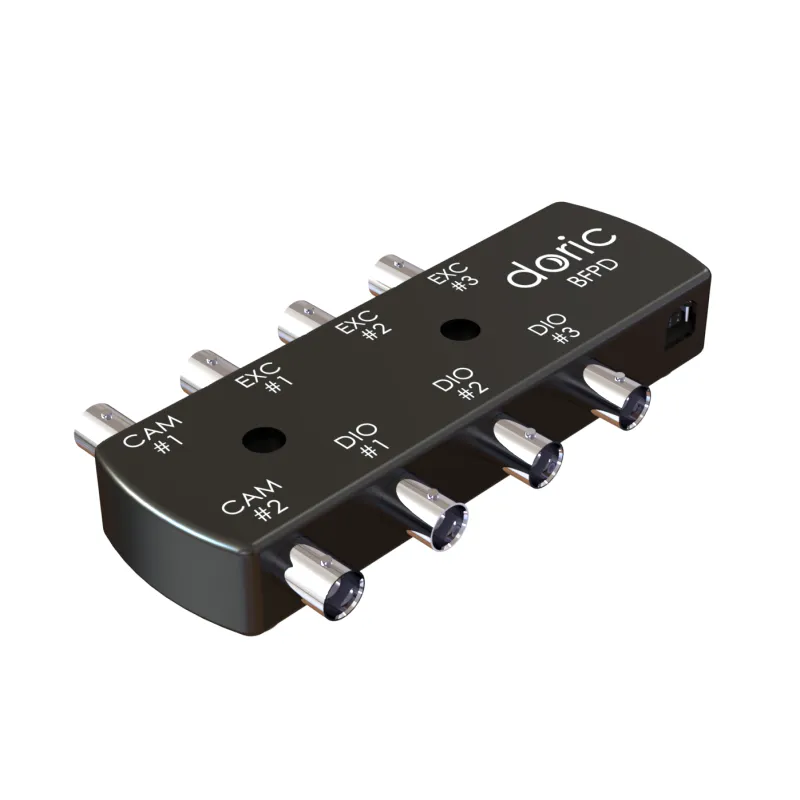

The Bundle-imaging Fiber Photometry Driver connects to a computer via USB cable (included), and no external power supply is required. The Doric Neuroscience Studio software uses the driver to coordinates several devices used by a Bundle-imaging Fiber Photometry System.
These devices include LED light sources, behavior cameras, and other behavior monitoring devices that communicate with the driver over TTL signals. -
Time Resolution Accuracy 0.001 ms LED sampling rate
1 to 20 Hz
Camera frame rate 1, 2 or 3 x LED sampling rate
(number of excitations interleaved)
Pulse Frequency DC to 10 kHz Output Voltage TTL 5.0 V (high impedance) Output Current max 20 mA per channel Input Voltage 0 to 5.0 V (maximum) Current Consumption 200 mA (powered by USB)
Dimensions 135 mm x 70 mm x 21 mm Mass 200 g -
Drawing Bundle-imaging Fiber Photometry Driver
